Part Number : C1970

Function : 40V, 0.6A, NPN Epitaxial Planar Type Transistor

Package : TO-220 Type

Maker : MITSUBISHI ELECTRIC

Pinouts :
C1970 datasheet

Description :

2SC1970, C1970 is a silicon NPN epitaxial planar transistor designed for RF power amplifiers on VHF band mobile radio applications.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 40 V

2. Collector to Emitter Voltage : Vceo = 17 V

3. Emitter to Base Voltage : Vebo = 4 V

4. Collector Current : Ic = 0.6 A

5. Total Dissipation : Pc = 1 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C

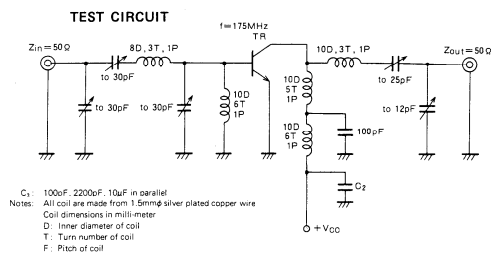

Test Circuit


Datasheet PDF Download :
C1970 pdf

Others datasheet of same file : 2SC1970
