Part Number : BY396

Function : 3A, 100V, Fast Silicon Rectifier, Diode

Package : DO-201 Type

Maker : Diotec Semiconductor Germany

Image :

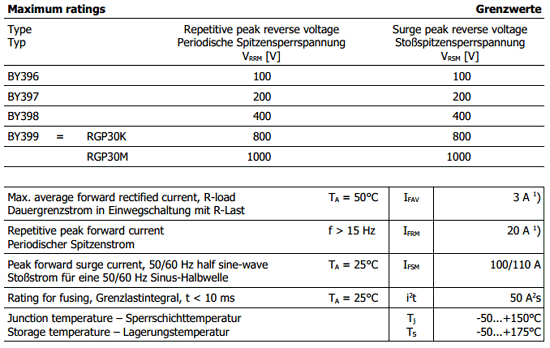

BY396 datasheet

Description :

Nominal current  : 3 A

BY396 ... BY399, RGP30K, RGP30M

Repetitive peak reverse voltage : 100...1000 V

Features

1. Low forward voltage drop

2.  High current capability

3. High reliability

4.  High surge current capability

MECHANICAL DATA

1. Case: Molded plastic

2. Epoxy: UL 94V-0 rate flame retardant

3. Lead: Axial leads, solderable per MIL-STD-202,method 208 guranteed

4.  Polarity: Color band denotes cathode end

5.  Mounting position: Any

6. Weight: 1.10 grams


Datasheet PDF Download :
BY396 pdf

Others datasheet of same file :

BY397, BY398, BY399, RGP30K
