Part Number : BP3125

Function : High precision primary-side feedback and regulation controller for LED lighting.

Package : DIP 8 Pin type

Maker : Bright Power Semiconductor

Image :
BP3125 datasheet

Description :

BP3125 is a high precision primary side feedback LED constant current control switch.
Chip in discontinuous inductor current mode, for full input voltage
Range of 12W or less isolated flyback LED constant current power supply.


BP3125 chip integrated 600V power switch, using the primary anti-Feeder mode, without secondary feedback circuitry, and without compensation circuit, only Requires minimal external components to achieve constant, significant savings Cost and size of the system.

Features

1. Built-in 600V Power MOSFET

2. Constant current control without secondary sense and feedback circuit.

3. ±3% LED current accuracy

4. Ultra low operating current to improve efficiency

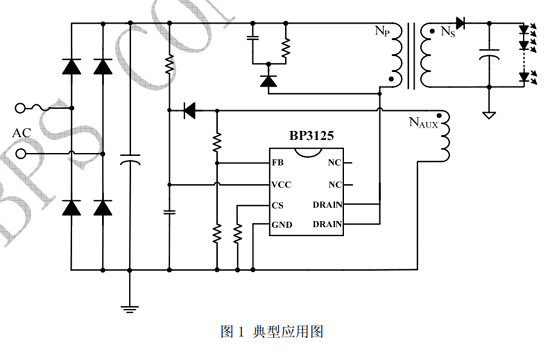

Application Circuits






Datasheet PDF Download :
BP3125 pdf

Others datasheet of same file : BP-3125
