Part Number : BAS70T
Function : 70V; 70mA surface mount schottky barrier diode. PN junction guard ring for transient and ESD protection
Maker : Diodes Incorporated.

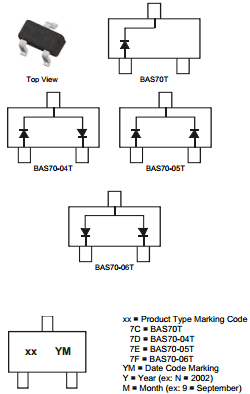

Pinouts :
BAS70T datasheet

Description :

Features
•  Low Turn-on Voltage
•  Fast Switching
•  PN Junction Guard Ring for Transient and ESD Protection
•  Ultra-Small Surface Mount Package
•  Lead Free/RoHS Compliant
•  "Green" Device

Mechanical Data
•  Case: SOT-523
•  Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
•  Moisture Sensitivity: Level 1 per J-STD-020D
•  Terminals: Finish - Solderable per MIL-STD-202, Method 208
•  Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
•  Polarity: See Diagrams Below
•  Weight: 0.002 grams (approximate)


Datasheet PDF Download :
BAS70T pdf

Others datasheet of same file : BAS70-04T-7-F,BAS70-05T-7-F,BAS70-06T-7-F,BAS70T,BAS70T-04T
