Part Number : AN17820B

Function : BTL 7.5 W, Audio Power Amplifier ( Silicon Monolithic Bipolar IC)

Package : SIL-12 Pin Type

Maker : Panasonic Corporation

Image :
AN17820B datasheet

Description :

AN17820B is a monolithic integrated circuit designed for 7.5 W ×2-ch (8 Ω) output audio power amplifier. It is a dual channel BTL IC suitable for stereo operation in TV application.

1. BTL 7.5W x 2ch Power Amplifier with Standby Function and Volume Function

2. SIL-12 Pin Plastic Package (Power Type with Fin)



Features

1. Built-in stand-by circuit

2. Built-in volume circuit

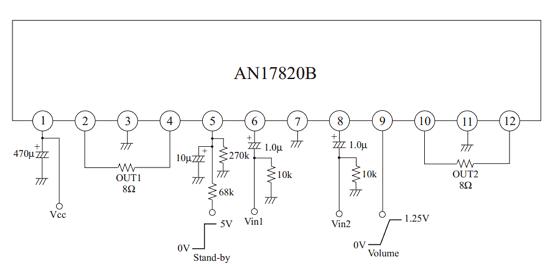

Pinout

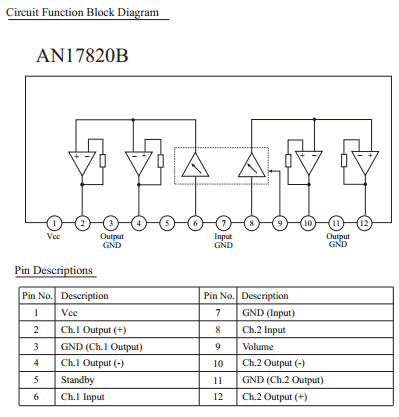

Block Diagram

Others datasheet of same file : AN17820


Datasheet PDF Download :
AN17820B pdf
