Part Number : AM29F100T

Function : 1 Megabit, CMOS 5.0 Volt-only, Sector Erase Flash Memory

Package : SO 44, TSSOP 48 Pin Type

Maker : Advanced Micro Devices

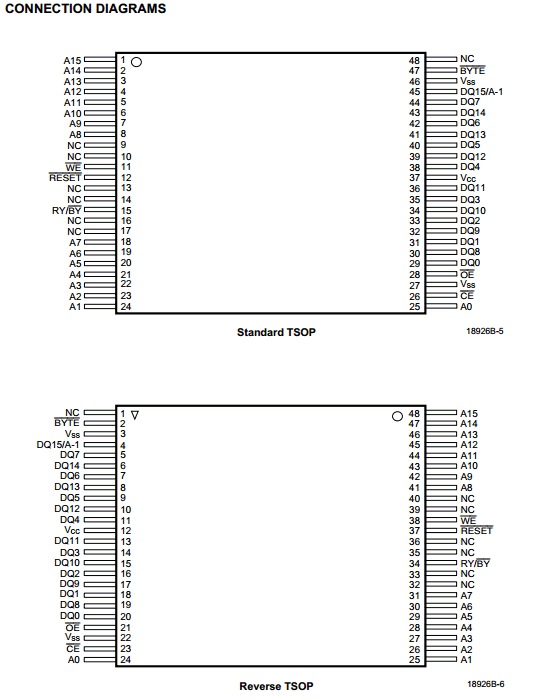

Pinouts :
AM29F100T datasheet

Description :

The Am29F100, AM29F100T is a 1 Mbit, 5.0 Volt-only Flash memory organized as 128 Kbytes of 8 bits each or 64 words of 16 bits each. The 1 Mbit of data is divided into 5 sectors of one 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and one 64 Kbytes, for flexible erase capability.

The 8 bits of data will appear on DQ0–DQ7 or 16 bits on DQ0–DQ15. The Am29F100 is offered in 44-pin SO and 48-pin TSOP packages. This device is designed to be programmed in-system with the standard system 5.0 Volt VCCsupply.

12.0 Volt VPPis not required for program or erase operations. The device can also be reprogrammed in standard EPROM programmers.



Features :

1. Single power supply operation

2. High performance

3. Low power consumption

4. Flexible sector architecture


Datasheet PDF Download :
AM29F100T pdf

Others datasheet of same file :

AM29F100B-120EC, AM29F100B-120EE, AM29F100B-120EEB,

AM29F100B-120EI, AM29F100B-120FC
