Part Number : ADS8354

Function : Dual, High-Speed, 16-Bit, Simultaneous-Sampling, Analog-to-Digital Converter

Package : TSSOP 16 Pin

Maker : Texas Instruments

Pinouts :
ADS8354 datasheet

Description :

The ADS8354, ADS7854, and ADS7254 belong to a family of pin-compatible, dual, high-speed, simultaneous-sampling, analog-to-digital converters(ADCs) that support fully-differential analog inputs.

Each device includes two individually programmable reference sources that can be used for system-level gain calibration. Also, a flexible serial interface that can operate over a wide power-supply range enables easy communication with a large variety of host controllers.

Power consumption for a given throughput can be optimized by using the two low-power modes supported by the device. All devices are fully specified over the extended industrial temperature range (–40°C to 125°C) and are available in pin-compatible, WQFN-16 (3-mm ×3-mm) and TSSOP-16 packages.

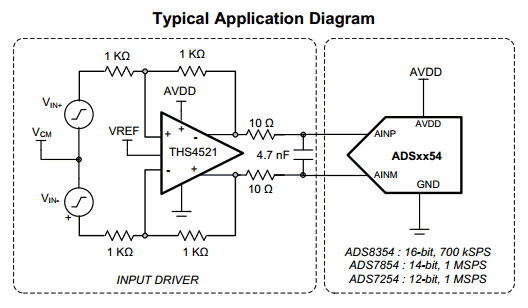

 Diagram


Datasheet PDF Download :
ADS8354 pdf

Others datasheet of same file : 7254, 7854, 8354, ADS7254, ADS7254IPW
