Part Number : AD9850
Function : CMOS, 125 MHz Complete DDS Synthesizer
Maker : Analog Devices

Pinouts :
AD9850 datasheet

Description :

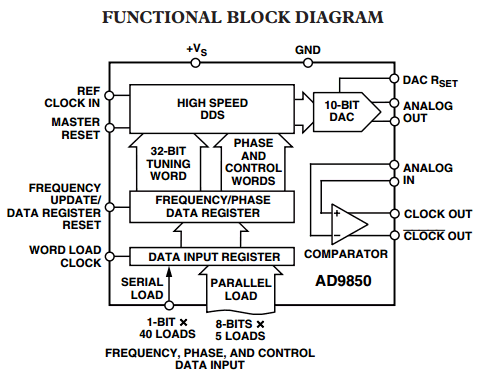

The AD9850 is a highly integrated device that uses advanced DDS technology coupled with an internal high speed, high performance D/A converter and comparator to form a complete, digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9850 generates a spectrally pure, frequency/phase programmable, analog output sine wave.

This sine wave can be used directly as a frequency source, or it can be converted to a square wave for agile-clock generator applications. The AD9850’s innovative high speed DDS core provides a 32-bit frequency tuning word, which results in an output tuning resolution of 0.0291 Hz for a 125 MHz reference clock input.




Datasheet PDF Download :
AD9850 pdf

Others datasheet of same file : AD9850,AD9850/CGPCB,AD9850/FSPCB,AD9850BRS,AD9850BRS-REEL
