Part Number : AD5371
Function : 40-Channel, 14-Bit, Serial Input, Voltage Output DAC
Maker : Analog Devices

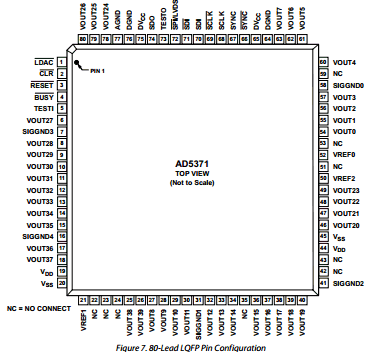

Pinouts :
AD5371 datasheet

Description :

GENERAL DESCRIPTION
The AD5371 contains 40 14-bit DACs in a single 80-lead LQFP or 100-ball CSP_BGA. The device provides buffered voltage outputs with a span of 4× the reference voltage. The gain and offset of each DAC can be independently trimmed to remove errors. For even greater flexibility, the device is divided into five groups of eight DACs. Three offset DACs allow the output range of the groups to be adjusted. Group 0 can be adjusted by Offset DAC 0, Group 1 can be adjusted by Offset DAC 1, and Group 2 to Group 4 can be adjusted by Offset DAC 2. The AD5371 offers guaranteed operation over a wide supply range, with VSSfrom −16.5 V to −4.5 V and VDDfrom 9 V to 16.5 V. The output amplifier headroom requirement is 1.4 V operating with a load current of 1 mA.

FEATURES
40-channel DAC in 80-lead LQFP and 100-ball CSP_BGA
Guaranteed monotonic to 14 bits
Maximum output voltage span of 4 × VREF(20 V)
Nominal output voltage span of −4 V to +8 V
Multiple, independent output voltage spans available
System calibration function allowing user-programmable
offset and gain
Channel grouping and addressing features
Thermal shutdown function
DSP/microcontroller-compatible serial interface
SPI/LVDS serial interface
2.5 V to 5.5 V digital interface
Digital reset (RESET)
Clear function to user-defined SIGGNDx
Simultaneous update of DAC outputs

APPLICATIONS
Level setting in automatic test equipment (ATE)
Variable optical attenuators (VOA)
Optical switches
Industrial control systems
Instrumentation


Datasheet PDF Download :
AD5371 pdf

Others datasheet of same file : AD5371,AD5371BBCZ,AD5371BBCZ-REEL,AD5371BSTZ,AD5371BSTZ-REEL
