Part Number : 33N25T,  FDPF33N25T

Function : N-Channel UniFETTM MOSFET 250V, 33A

Package : TO-220 type

Maker : Fairchild Semiconductor

Image :
33N25T datasheet

Description :

UniFETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.

Pinout

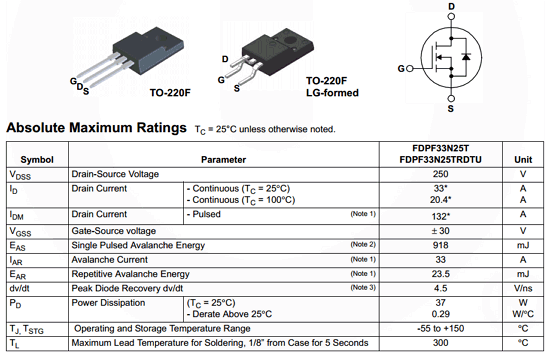

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 250 V

2. Gate to source voltage : VGSS = ± 30 V

3. Drain current : ID = 33 A

4. Power Dissipation : Pd = 37 W

5. Channel temperature : Tch =  150 °C

6. Storage temperature : Tstg = -55 to +150 °C


Applications :

1. PDP TV

2. Lighting

3. AC-DC Power Supply

Datasheet PDF Download :
33N25T pdf

Others datasheet of same file :

FDPF33N25T, FDPF33N25TRDTU
