Part Number : 2SD471
Function : 25V, 1A, Silicon NPN transistor
Maker : NEC , Renesas Technology

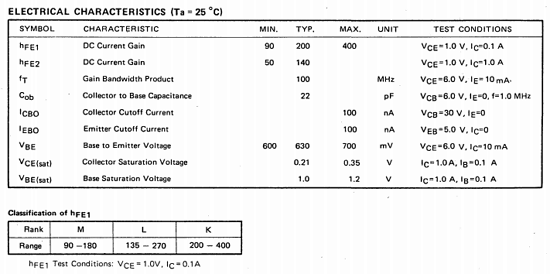

Image :
Description :
2SD471 is Silicon NPN transistor for use in driver and output stages of audio frequency amplifiers.
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 30 V
2. Collector to Emitter Voltage : Vceo = 25 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 1 A
5. Total Dissipation : Pc = 1 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : D471
