Part Number : 2SD1421

Function : 160V, 1.5A, NPN Transistor

Package : UPak Type

Maker : Hitachi , Renesas Electronics

Pinouts :
2SD1421 datasheet

Description :

Silicon NPN Epitaxial Transistor

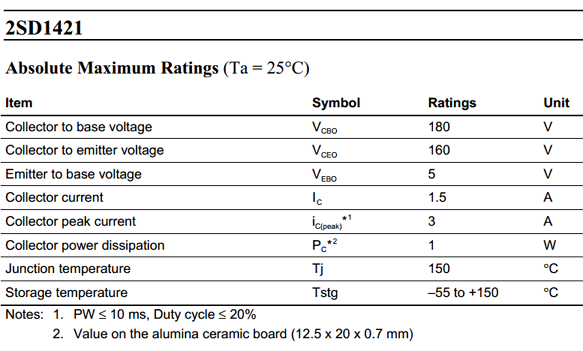

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 180 V

2. Collector to Emitter Voltage : Vceo = 160 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 1.5 A

5. Total Dissipation : Pc = 1 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C



Applications :

Low frequency power amplifier


Datasheet PDF Download :
2SD1421 pdf

Others datasheet of same file : D1421
