Part Number : 2N7000
Function : N-Channel Enhancement Mode Field Effect Transistor
Maker : Fairchild Semiconductor

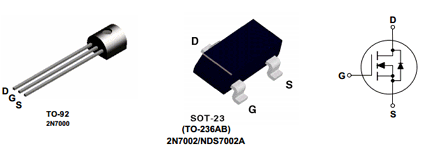

Pinouts :
2N7000 datasheet

Description : General Description
These N-Channel enhancement mode field effect transistors are produced using Fairchilds proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance.They can be used in most applications requiring up to 400mA DC and can deliver pulsed currents up to 2A. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.

Features
. High density cell design for low Rds(ON)
. Voltage controlled small signal switch.
. Rugged and reliable.
. High saturation current capability.

Datasheet PDF Download :
2N7000 pdf

Others datasheet of same file : 2N7000,2N7002,NDS7002A
